In product development, most problems do not appear during design. They appear when the first physical part is built.
A model may look correct in CAD, but once material is cut and formed, small issues begin to surface – interference between components, unexpected deformation during bending, or misalignment during assembly.
This is why sheet metal prototyping is not just a validation step. It is where design meets real manufacturing conditions.
A well-executed prototype allows teams to identify issues early, refine the design, and move into production with confidence. A poorly executed one simply delays those problems until they become more expensive to fix.
Digital models cannot fully predict how material behaves during fabrication.
In real conditions:
A sheet metal fabrication prototype exposes these realities before production begins.
This allows teams to:
For OEMs, this directly impacts development timelines and production reliability.
Not all prototypes provide useful insight. Common issues include:
When this happens, the prototype gives false confidence. Problems then reappear during production, where changes are more expensive and disruptive.
Effective prototyping must replicate real manufacturing conditions as closely as possible.

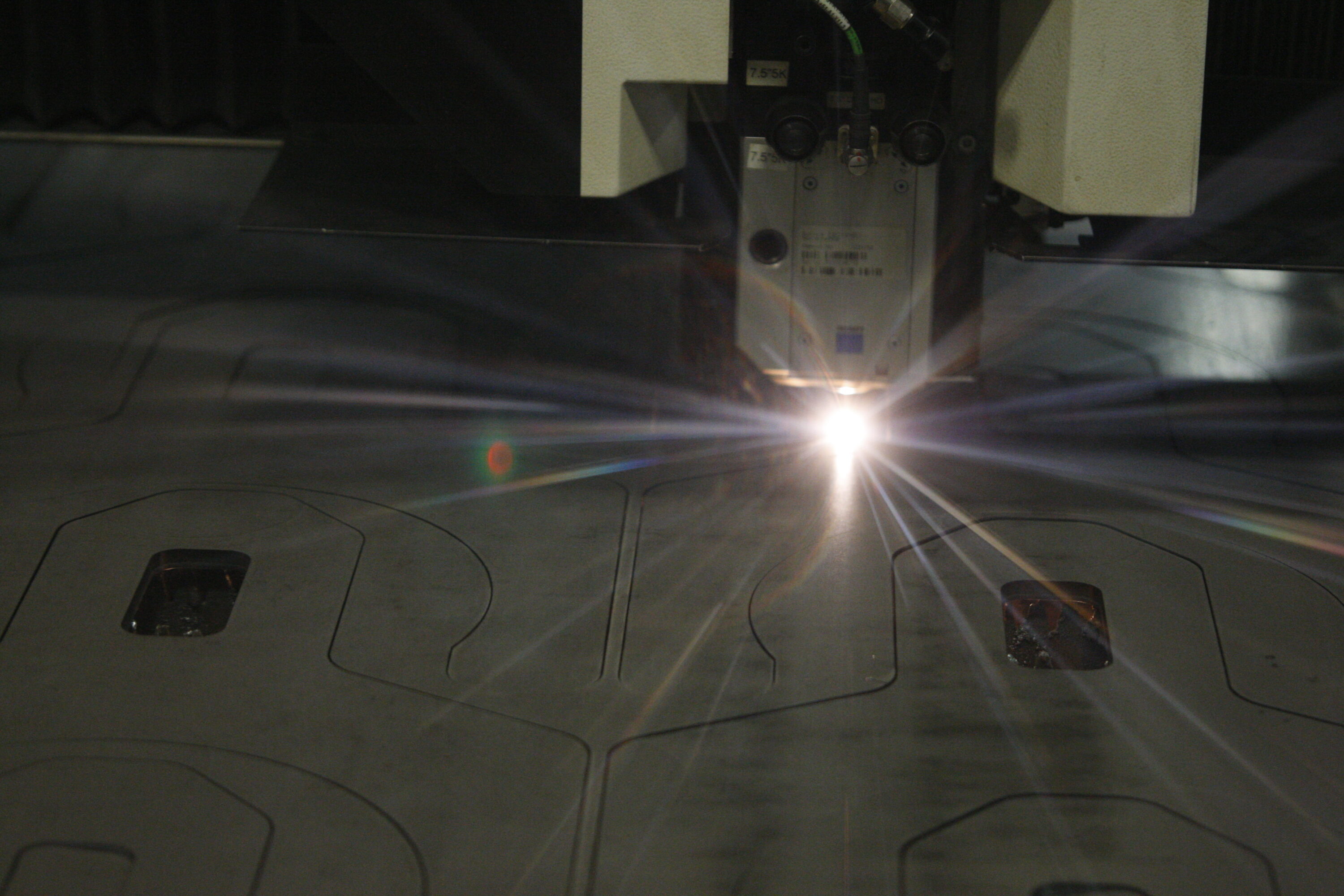

Laser cutting is typically the starting point. It defines the geometry of the part before forming.
Its advantage is precision and flexibility. Designs can be adjusted quickly without tooling changes.
However, accuracy here does not guarantee final part accuracy — forming and assembly still influence the outcome.
Punching is used when parts include repeated features such as slots, holes, or patterns.
It is especially useful when the goal is to replicate production conditions, since many high-volume parts are punched rather than laser cut.
Choosing between cutting and punching depends on how closely the prototype needs to reflect production.

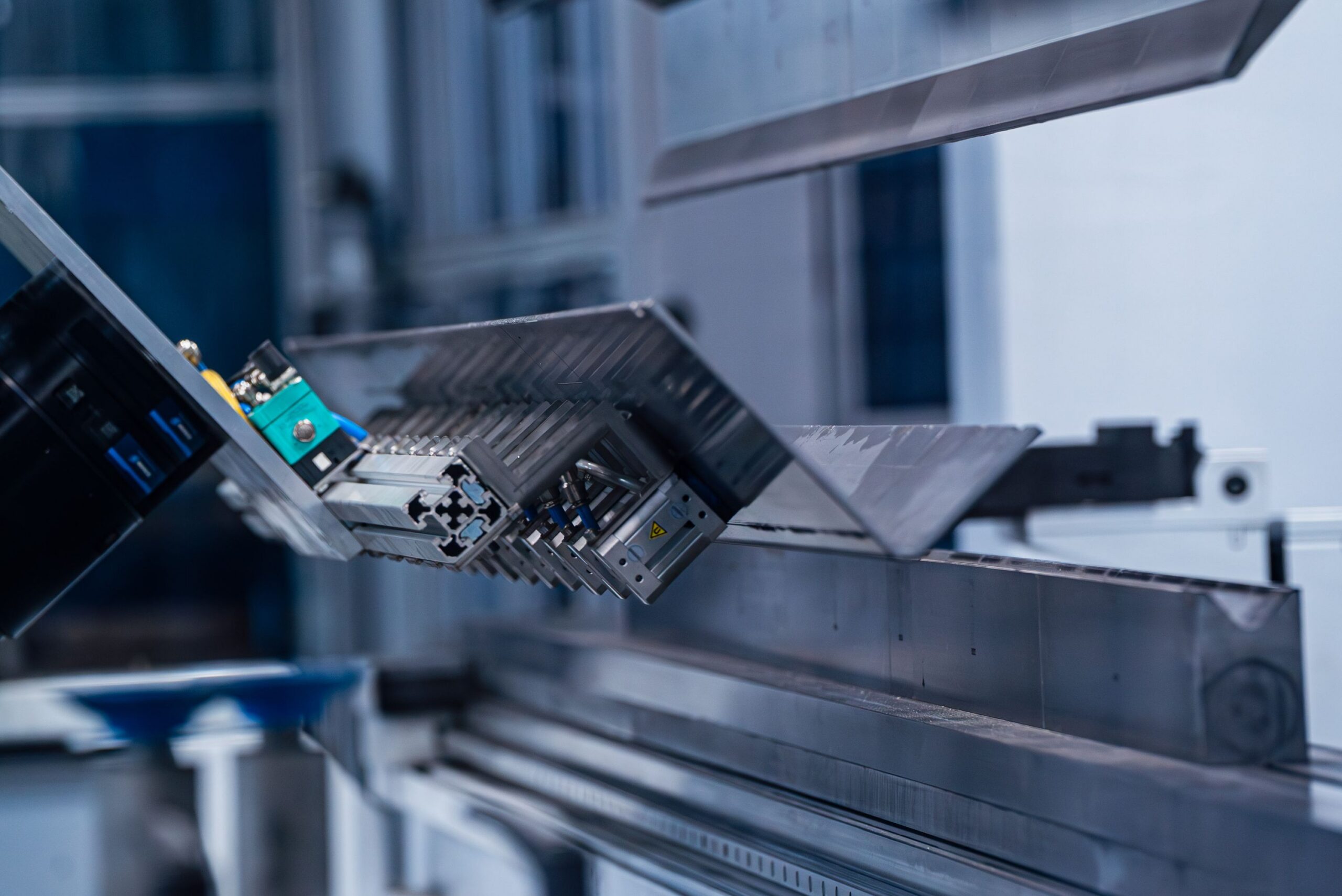

Forming is where most variation occurs.
Small differences in bend radius, tooling, or material behavior can affect:
This is why prototypes must be formed using realistic tooling conditions, not simplified approximations.
Most functional prototypes combine multiple processes — cutting, forming, welding, and sometimes machining.
This approach allows teams to evaluate how the part behaves as a complete system, not just as individual features.
It also highlights how fabrication steps interact with each other, which is critical for production readiness.
Using substitute materials may reduce cost, but it reduces accuracy.
Different materials respond differently to bending, welding, and finishing. Even small changes in thickness or grade can affect final geometry.
For meaningful validation, prototypes should use the same material as the intended production part.
Designs must account for how metal behaves under stress.
Ignoring bend limits can lead to:
Experienced fabricators adjust bend allowances and tooling to match real-world conditions.
Hole placement is a common source of problems.
Features placed too close to bends can deform during forming. This leads to misalignment during assembly or issues with fasteners and hardware.
Prototyping helps identify and correct these issues before production.
Speed is not just about producing parts quickly. It is about reducing iteration cycles.
Modern sheet metal prototyping allows:
This shortens the path from concept to production by reducing uncertainty at each stage.
The value of a prototype depends heavily on who builds it.
A capable partner does more than fabricate parts. They provide:
At TMCO, prototyping is integrated with full-scale manufacturing. The same processes, equipment, and quality standards used in production are applied during prototyping.
This ensures that what works in the prototype stage will scale reliably.
A common mistake is treating prototyping as a one-time task.
In reality, it is part of a system that includes:
Each stage influences the others.
If one element is disconnected – for example, using non-production processes – the entire system becomes less reliable.
Effective sheet metal prototyping improves more than just the initial design.
It supports:
For OEMs, this leads to more stable product launches and fewer downstream issues.
Sheet metal prototyping is where design assumptions are tested against real manufacturing conditions.
When executed correctly, it allows teams to identify issues early, refine designs, and move into production with confidence.
When executed poorly, it simply delays those problems until they are more difficult and expensive to fix.
At TMCO, prototyping is treated as part of an integrated manufacturing system — ensuring that every prototype supports production readiness, not just initial validation.
