Batch powder coating is a practical choice for prototypes, short production runs, oversized components, and projects with frequent color changes. Parts are coated and cured in separate loads, giving fabricators flexibility to handle different geometries and finish requirements.
As production volumes increase, however, moving racks between stages and loading and unloading oven batches can restrict output. A finishing process that works well for occasional orders may struggle to keep pace with a recurring production schedule.

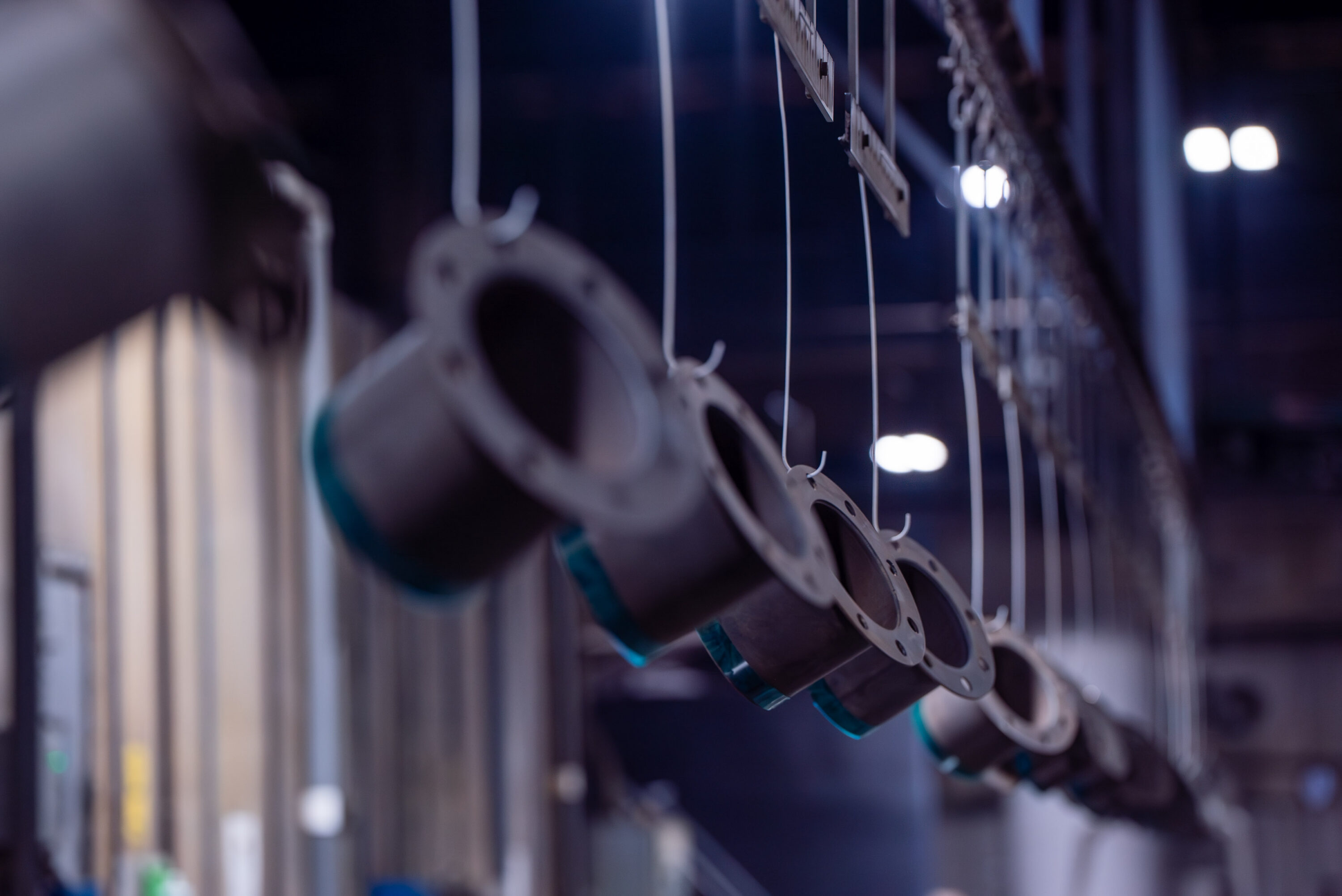

Powder coating conveyor systems connect finishing stages into a continuous production flow. By moving parts at a controlled speed through preparation, coating, and curing, a properly configured line can increase throughput and make the process more repeatable.
Those benefits depend on how the line is designed, operated, and maintained. Consistent finishes require the right combination of surface preparation, application settings, part handling, and verified cure conditions.
A conveyor powder coating line is an integrated system. In a typical installation, parts travel through pretreatment, a dry-off oven, the coating booth, the cure oven, and a cooling area before unloading. Each stage must provide enough processing time at the selected conveyor speed.
Line design starts with the parts and the production requirements. Important considerations include:
Conveyor speed links these requirements together. Increasing speed reduces the time available for washing, drying, coating, and curing unless equipment capacity or other process settings compensate. A suitable operating speed must support every stage, including the most demanding part in the approved production mix..
Powder coating performs best on a properly prepared surface. Oils, fabrication residues, rust, and other contamination can interfere with adhesion and corrosion protection.
A conveyor line may use a multi-stage spray washer, but there is no universal stage count or chemical sequence. The process depends on the substrate, incoming surface condition, required performance, and chemical supplier’s instructions.
A pretreatment sequence may include:
Some systems combine steps or require additional stages. Zinc phosphate processes, for example, may include a separate conditioning stage. The number of stages alone does not establish coating quality, and a deionized final rinse does not guarantee long-term corrosion resistance.
Conveyor speed controls contact time within a given spray zone. Chemical concentration, temperature, pH, spray pressure, and rinse-water quality require their own controls. Part spacing and orientation also matter because tightly packed or poorly positioned components can block spray access or trap liquid.

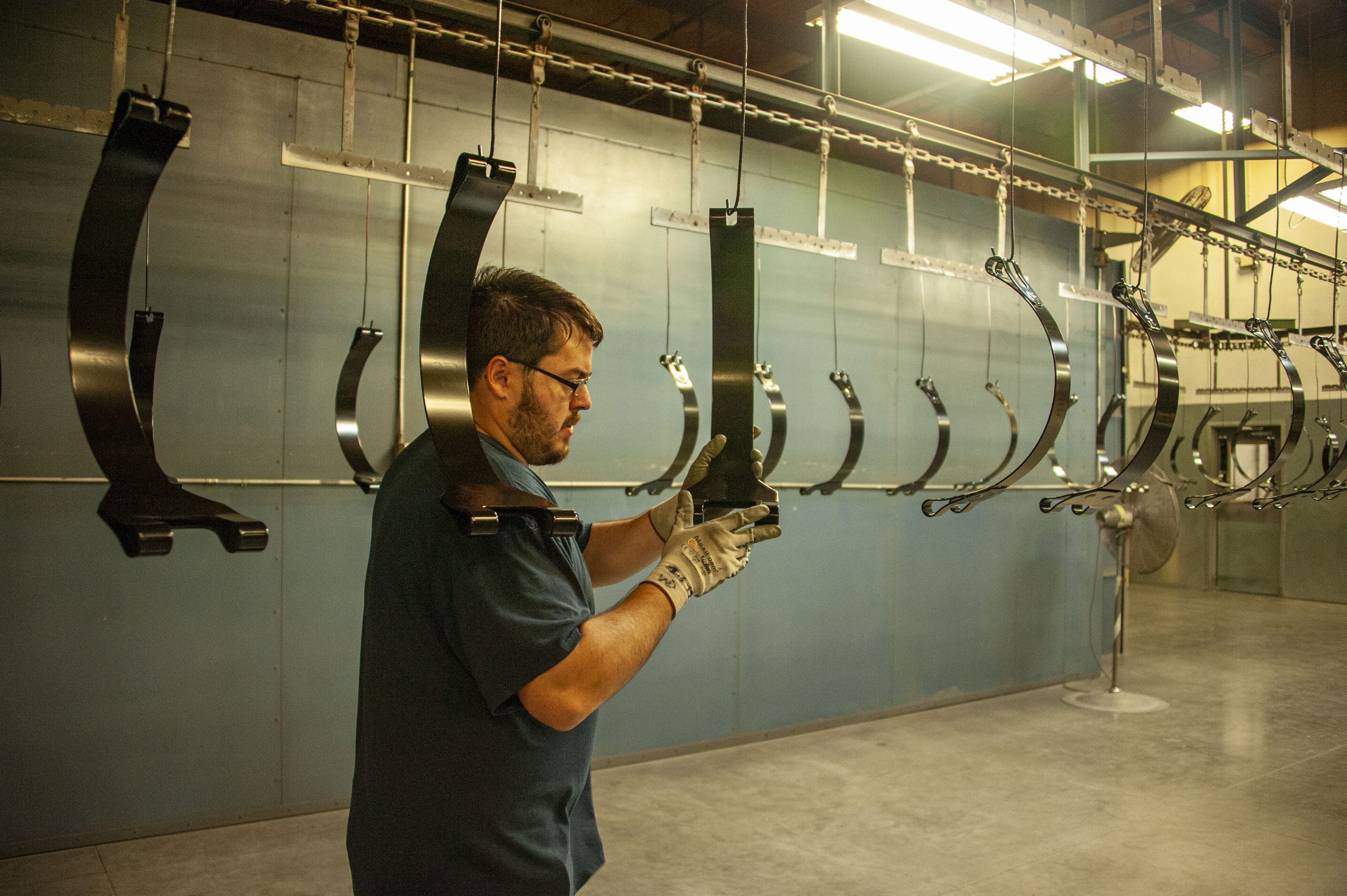

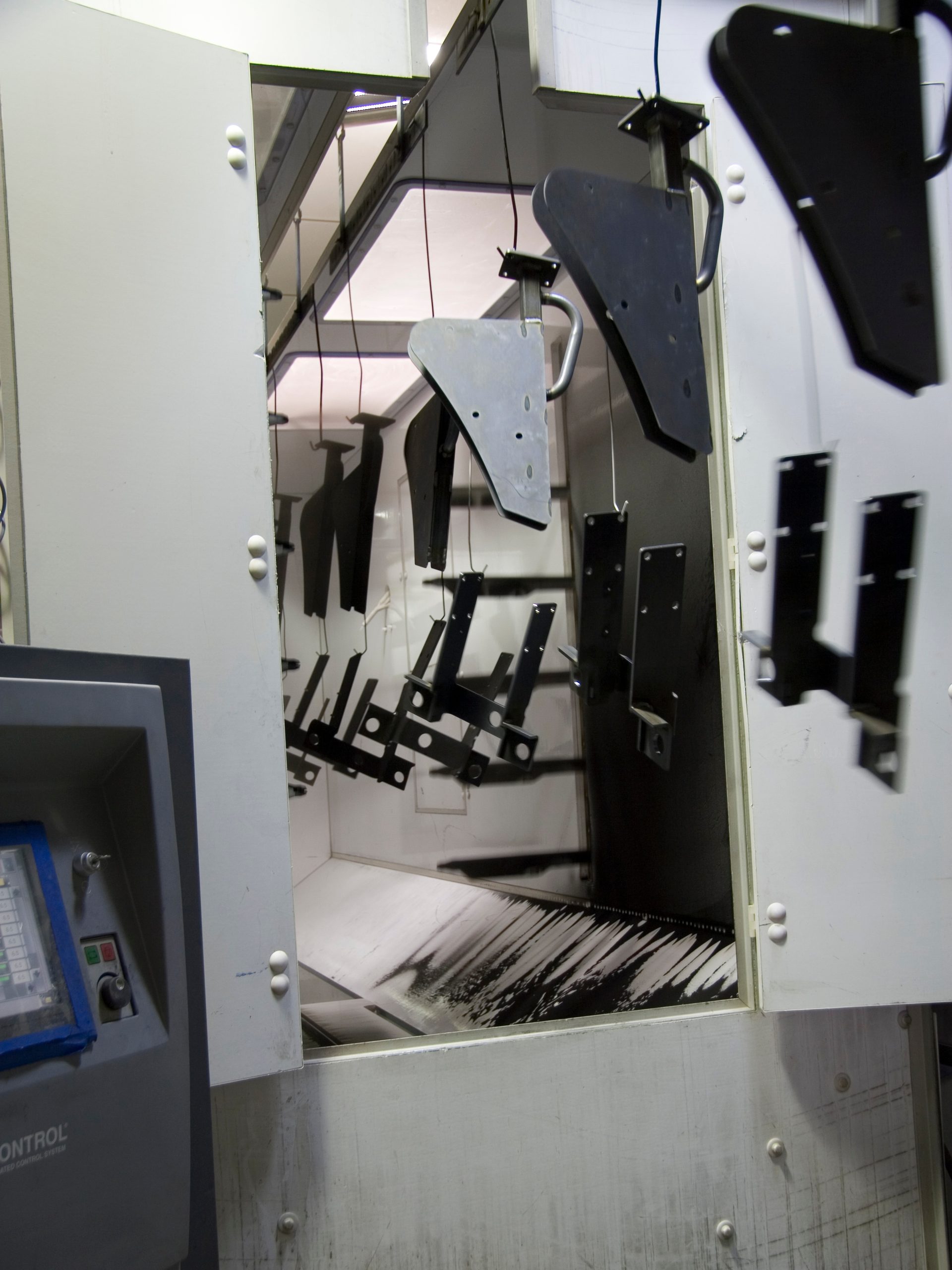

Conveyor lines can use manual spray guns, automatic guns, reciprocators, or a combination of these methods. The conveyor controls part movement; the application setup determines how consistently powder reaches the surface.
Automatic equipment can reduce variation by repeating documented settings for powder output, electrostatic voltage and current, gun distance, and gun movement. Effective grounding and consistent hanger loading help that setup perform as intended.
Complex geometries still require attention. Recesses and internal corners can be difficult to coat because of the Faraday cage effect, which limits powder penetration into those areas. Adjusted electrical settings, gun angles, part orientation, or manual touch-up may be needed.
Automation supports repeatability, but it does not eliminate variation. Worn equipment, contaminated hooks, changing part positions, and inconsistent powder delivery can affect coverage. Film thickness should be checked at defined locations against the approved specification, including difficult features and surfaces where coating buildup could affect fit.
For thermosetting powders, curing creates the chemical cross-links that give the finish its intended properties. The powder manufacturer’s technical data sheet defines the required time and temperature conditions.
Oven air temperature and actual part temperature are different measurements. Parts need time to heat up, and that time varies with material, thickness, geometry, and loading. A specified hold time at metal temperature must be achieved by the part; simply spending that much time inside an oven at the same setpoint does not establish full cure.
Conveyor speed determines total oven residence time for a given path length. The process must allow for both heat-up and the required cure conditions. Heavy and light parts may need separate operating recipes or validated loading arrangements.
Some ovens use multiple temperature zones to manage heat input. Others use a single controlled zone. Either arrangement must be evaluated by the thermal profile it produces on the actual parts. Additional zones do not automatically compensate for differences in part mass or loading.
Temperature profiling uses thermocouples and a data logger to record representative part temperatures through the oven. Comparing those results with the powder’s cure requirements provides evidence that the process is suitable. Profiling frequency should follow the quality plan, with revalidation after changes that could affect cure. Parts also need sufficient cooling before handling and packaging.
A conveyor line can reduce the interruptions associated with moving separate batches between finishing stages. Once the line is running steadily, output becomes easier to estimate from conveyor speed, hanger spacing, and the number of parts carried on each hanger.
For example, a line running at 8 feet per minute with hangers spaced 18 inches apart and one part per hanger has a theoretical output of:
8 ÷ 1.5 × 60 = 320 parts per hour
That calculation assumes every hanger is loaded and the line runs continuously. Actual output must account for color changes, planned gaps, maintenance, loading capacity, downtime, inspection, and rework. Increasing speed is useful only when the rest of the process can maintain the required finish quality.
For recurring production programs, a validated output rate helps manufacturers plan labor, coordinate upstream fabrication, and establish realistic delivery schedules. Batch coating remains useful for work with frequent changes or parts that do not suit the conveyor line. The best process depends on the production mix as well as order volume.
A continuous line provides useful locations for process checks. Effective monitoring combines equipment settings with measurements of the parts being produced. Similar controls also support quality in batch operations.
An appropriate quality plan may include:
Records should connect process settings and inspection results to the relevant job or production lot. When a measurement falls outside its limits, the response should include containing affected parts, correcting the cause, and verifying acceptable results before release.

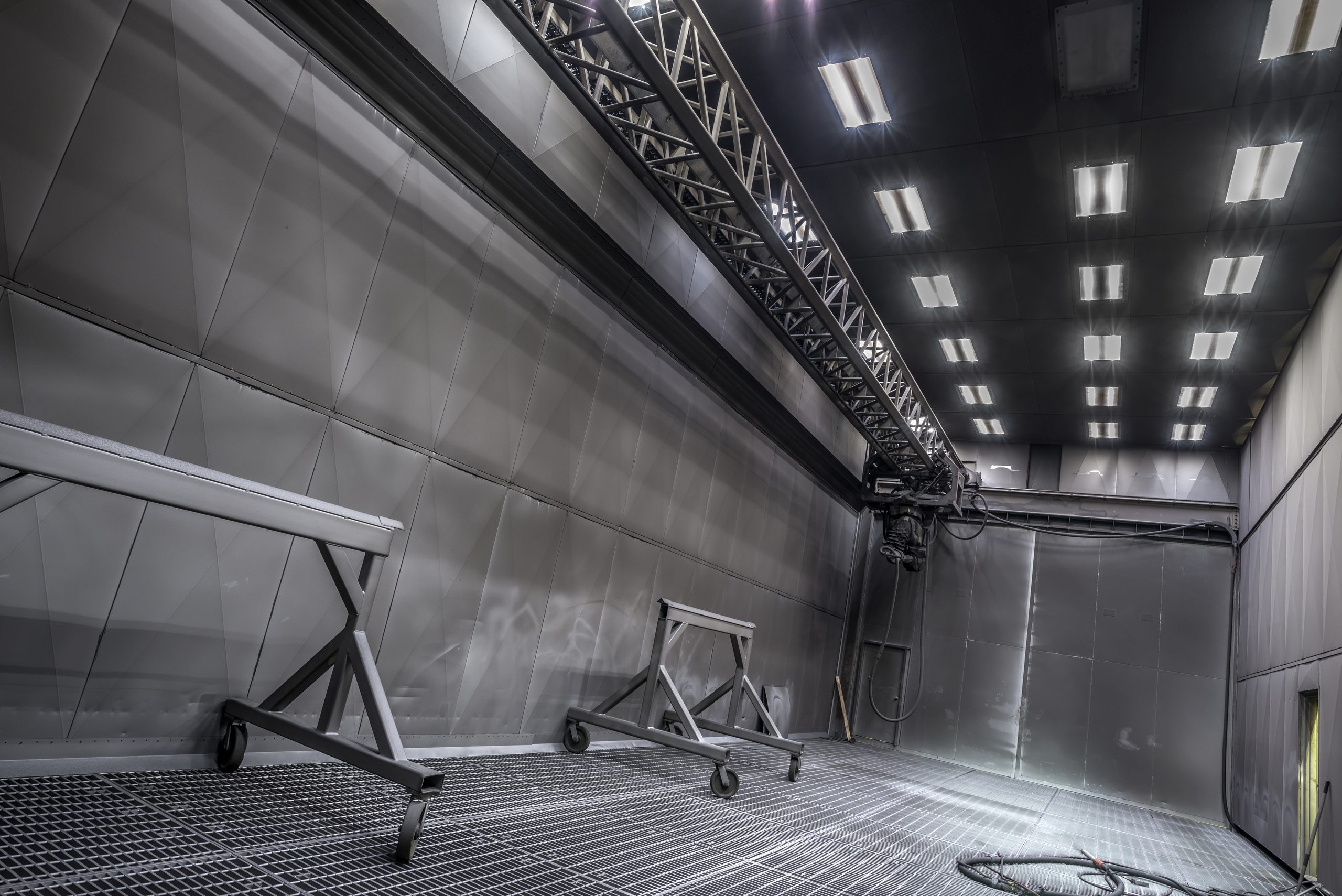

TMCO’s finishing capabilities include a conveyor-driven powder coat line, an automated powder production line, large-format powder coating equipment, and a mid-size batch booth and oven. These options support different part sizes and production requirements alongside TMCO’s fabrication, machining, welding, and assembly services.
For a production program, the appropriate finishing approach depends on the substrate, geometry, service environment, coating specification, and expected volume. Reviewing those requirements early helps coordinate finish needs with part design, manufacturing, inspection, and delivery.
Contact TMCO to discuss your part dimensions, finish requirements, production quantities, masking needs, and inspection expectations.
A powder coating conveyor system moves parts through finishing stages at a controlled speed. A typical line includes pretreatment, drying, powder application, curing, and cooling, with equipment and settings selected for the parts being processed.
Controlled part movement and repeatable application settings can reduce variation across recurring production runs. The results depend on surface preparation, loading, grounding, equipment condition, and cure control. Both conveyor and batch operations can produce high-quality finishes when properly managed.
The sequence should match the substrate, incoming surface condition, coating system, and performance requirements. It may include cleaning, rinsing, conversion coating, additional rinsing or sealing, and a treated-water final rinse. Additional conditioning stages may be needed for certain chemistries.
At a fixed oven path length, faster conveyor speeds reduce residence time and slower speeds increase it. Actual part-temperature profiles must confirm that the parts heat up and meet the powder manufacturer’s required cure conditions at the selected speed.
Continuous flow can reduce batch transfers and make output easier to plan for recurring production. Actual capacity depends on hanger loading, line speed, part mix, color changes, downtime, and the ability of each stage to maintain the specified quality.
