Powder coating quality is determined long before a finished part reaches final inspection. Surface condition, pretreatment, powder chemistry, application settings, cure history, and inspection requirements all influence whether the coating performs as intended.
For OEMs sourcing powder coating services, finish quality affects more than appearance. An unsuitable coating system or uncontrolled process can reduce corrosion protection, interfere with assembly, create color or texture variation, and lead to stripping, recoating, production delays, or field complaints.
The strongest suppliers do not promise that one standard process works for every part. They define the coating system around the substrate, geometry, service environment, and customer specification-and document how the process will be controlled.
Terms such as “black powder coat” or “outdoor-grade finish” leave too much open to interpretation. Before quoting or production begins, the customer and coating provider should align on the complete finish requirement.
A useful powder coating specification may identify:
This specification creates one definition of acceptance for the OEM, fabricator, coating provider, and inspector.
Clean, properly prepared metal is essential to coating adhesion and corrosion performance. Oil, grease, shop soil, weld residue, oxides, rust, mill scale, and handling contamination can interfere with the finished coating system.
However, surface preparation is not one universal step. Cleaning, conversion coating, and abrasive blasting perform different functions and may be used separately or in combination.
Chemical cleaning removes oils and process soils. A conversion coating can then modify the metal surface to improve adhesion and corrosion resistance.
For steel, pretreatment options may include iron phosphate, zinc phosphate, or newer zirconium-based systems. Zinc phosphate is often selected for demanding corrosion requirements, while iron phosphate is widely used for many general industrial applications. The most appropriate system depends on the substrate, exposure, coating system, part geometry, process control, and customer specification.
Aluminum, galvanized steel, and mixed-metal assemblies require pretreatments compatible with those substrates. A treatment suitable for carbon steel should not be assumed appropriate for every metal.
Abrasive blasting removes rust, mill scale, and other surface material while creating a measurable profile. The required cleanliness and profile should be based on the coating manufacturer’s recommendation or the project specification.
A profile that is too low may reduce mechanical anchoring. An excessively deep profile may require more coating to cover the peaks and can leave inadequate film over high points if the specified thickness does not account for it.
Blasting does not automatically replace cleaning or chemical pretreatment. Parts may still require removal of blast residue, oils, or soluble contamination, and some coating systems use blasting together with additional pretreatment.
Before coating, inspect for weld spatter, slag, sharp edges, tight crevices, trapped blasting media, and areas that cannot drain during washing. Edges may receive less effective coverage in some coating systems, while deep recesses can be difficult to coat electrostatically.
Ask a coating provider to explain the preparation route for your actual substrate and operating environment-not simply which washer or blast equipment is available.
Powder coatings are available in different resin chemistries and performance levels. The correct selection depends on the product’s environment and the approved coating specification.
“Polyester” alone is not a complete exterior specification. Standard-durable, super-durable, architectural, and other formulations can have different weathering capabilities. Likewise, corrosion resistance depends on the complete system-including substrate preparation, pretreatment, primer when used, topcoat, film build, cure, and part design-not powder chemistry alone.
Ask the provider to identify the proposed product and explain why its technical data match the required UV, chemical, temperature, mechanical, and corrosion exposure.

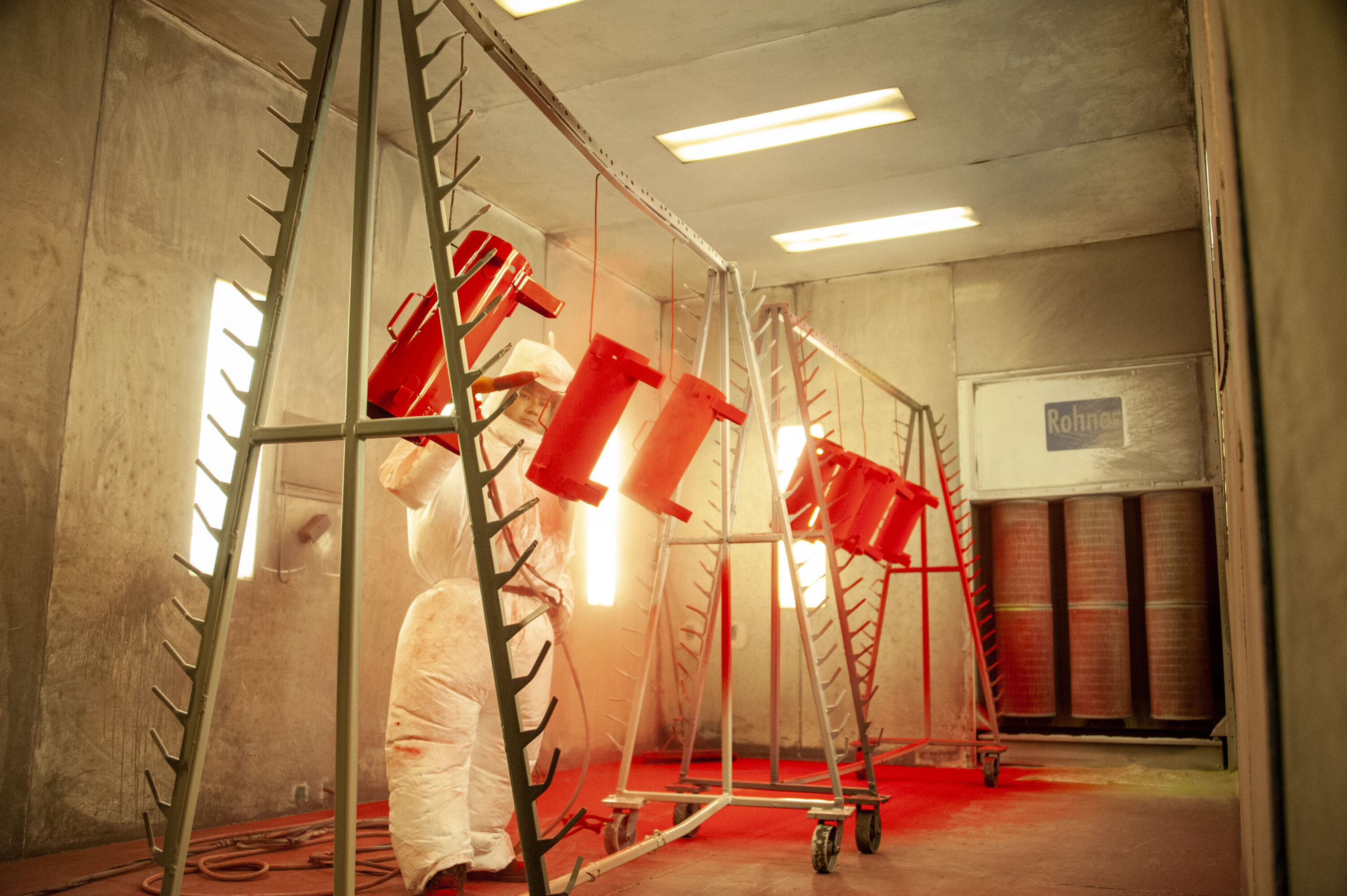

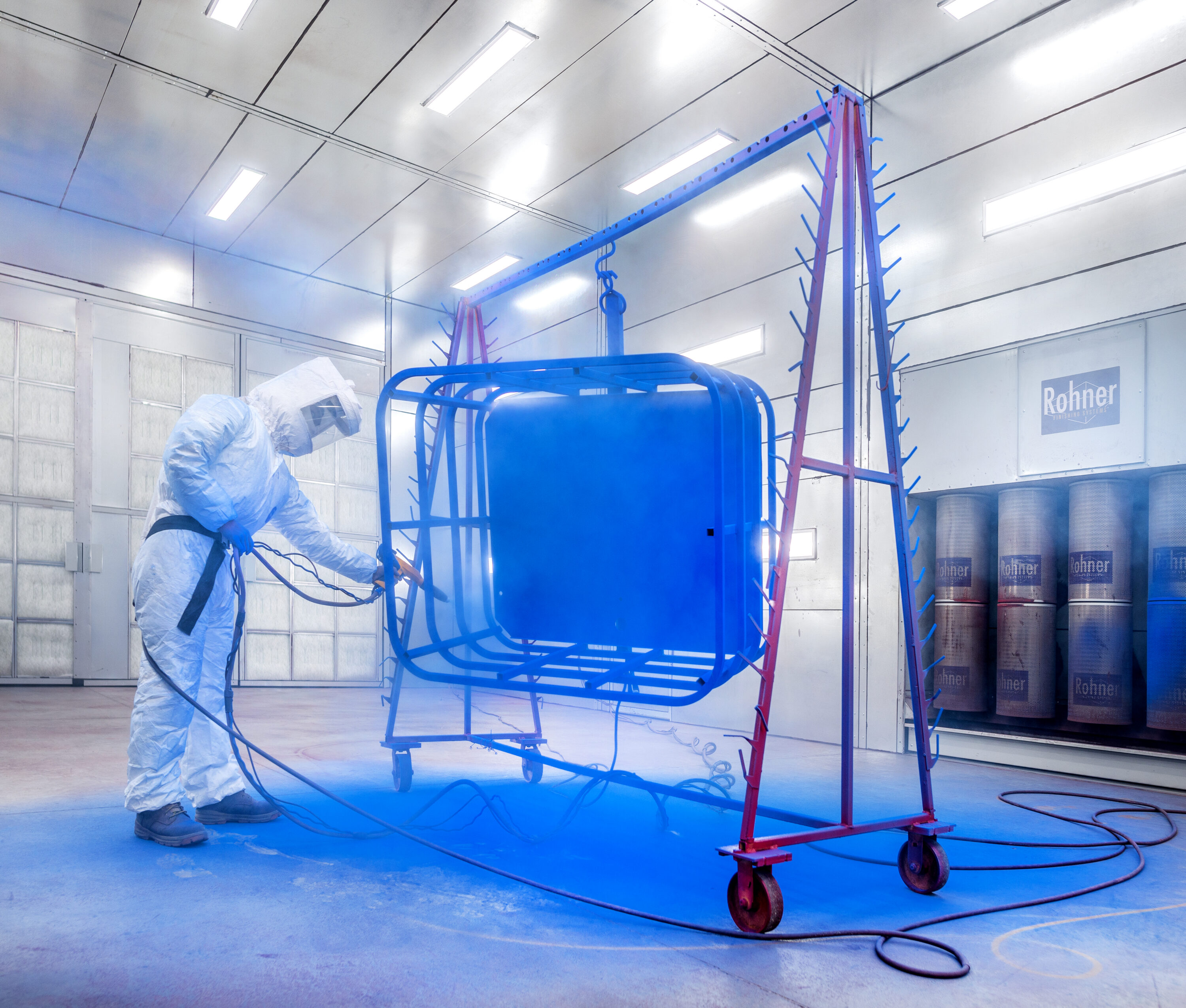

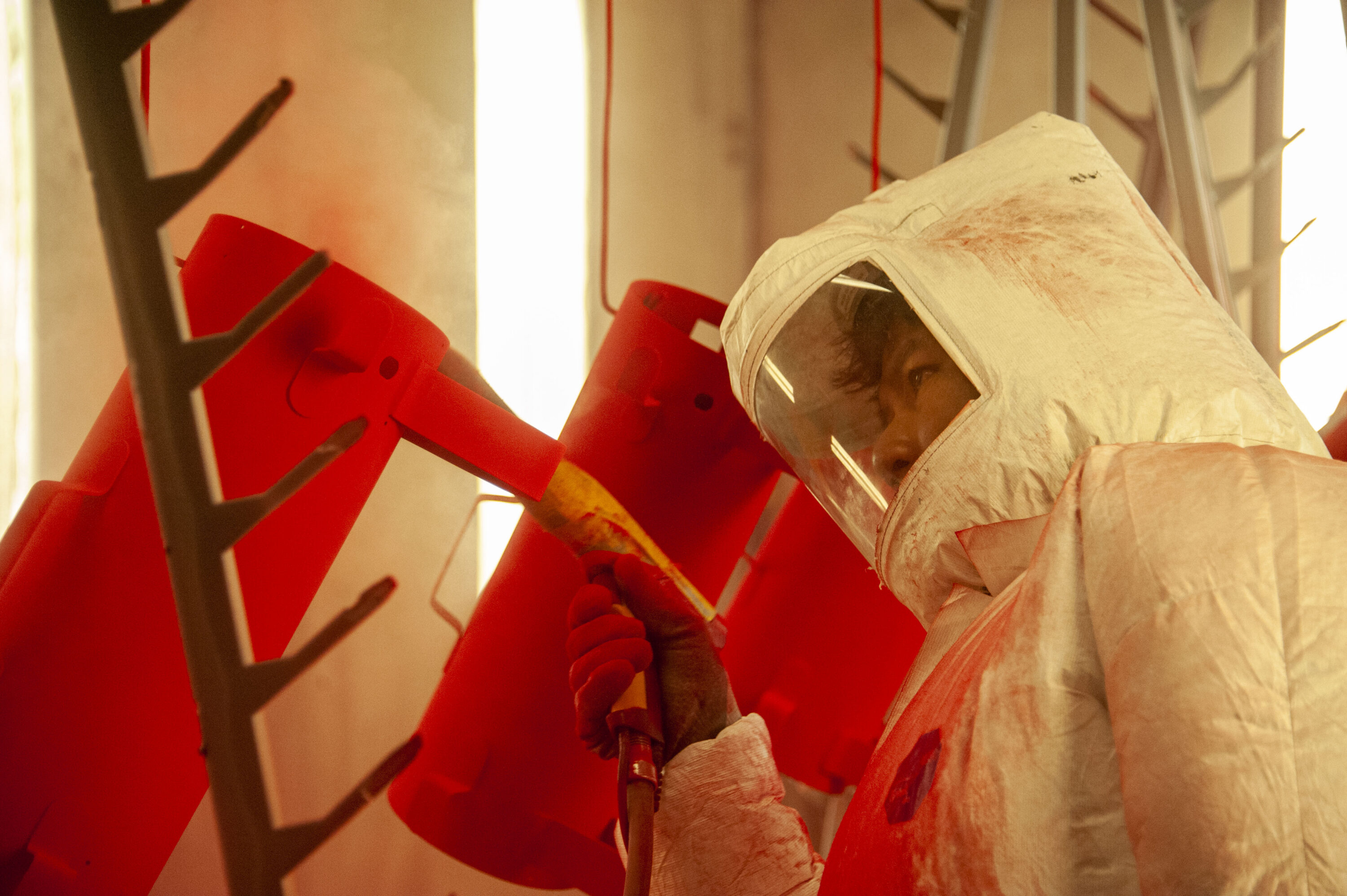

Electrostatic powder application depends on controlled equipment settings, good part grounding, gun positioning, powder condition, booth environment, and repeatable part presentation.
Complex geometry creates additional challenges. The Faraday-cage effect can make it difficult for charged powder to enter deep recesses, inside corners, channels, and closely spaced features. Operators may need to adjust voltage, current, powder flow, gun distance, angle, or application sequence to achieve coverage without excessive film on accessible areas.
Dry-film thickness should be specified from the approved powder’s technical data and the performance requirement. A common range cannot be applied to every powder, texture, substrate, or service condition.
Film that is too thin may provide insufficient coverage or protection. Excessive film can alter gloss or texture, reduce flexibility in some systems, create flow or appearance defects, and interfere with threads, fasteners, electrical contacts, or mating surfaces.
Before production, confirm:
Thermosetting powder coatings cure through a time-and-temperature reaction. The correct schedule is defined by the powder manufacturer’s technical data sheet and is commonly based on the temperature of the metal substrate, not simply the oven-air setpoint.
Part temperature changes with metal thickness, mass, geometry, rack density, oven loading, and line speed. A lightweight bracket and a heavy weldment may require different time to reach the specified metal temperature even when they travel through the same oven.
Under-cure can reduce mechanical and chemical performance. Excessive time or temperature can affect color, gloss, flexibility, or other properties depending on the formulation. Appearance alone does not reliably confirm cure.
Oven profiling uses thermocouples and a temperature recorder to track part temperature through the complete cycle. Profiling is especially valuable when qualifying a new part family, changing powder or loading patterns, establishing a recipe, or verifying the process after significant oven or line changes. The appropriate profiling frequency should be defined by the quality plan and process risk.
Routine cure verification may also include product-appropriate physical or chemical tests, but those tests should support-not replace-a validated time-at-metal-temperature process.
Ask the supplier:
There is no single inspection package that applies to every powder-coated part. The required tests, sample size, frequency, and acceptance criteria should be based on the drawing, customer specification, powder data sheet, risk, and approved control plan.
Common inspection methods include:
ASTM D3359 should not automatically be required on every production lot. Its use must fit the coating thickness, substrate, part, and customer requirement. Because it is destructive, representative test panels or designated test areas may be more appropriate.
Salt-spray testing under ASTM B117 can compare coating systems under controlled conditions when the specification defines the specimen and evaluation criteria. It should not be treated by itself as a direct prediction of years in service.
Before approving a supplier, ask:
Specific answers should connect equipment, procedures, records, and acceptance criteria to your component.

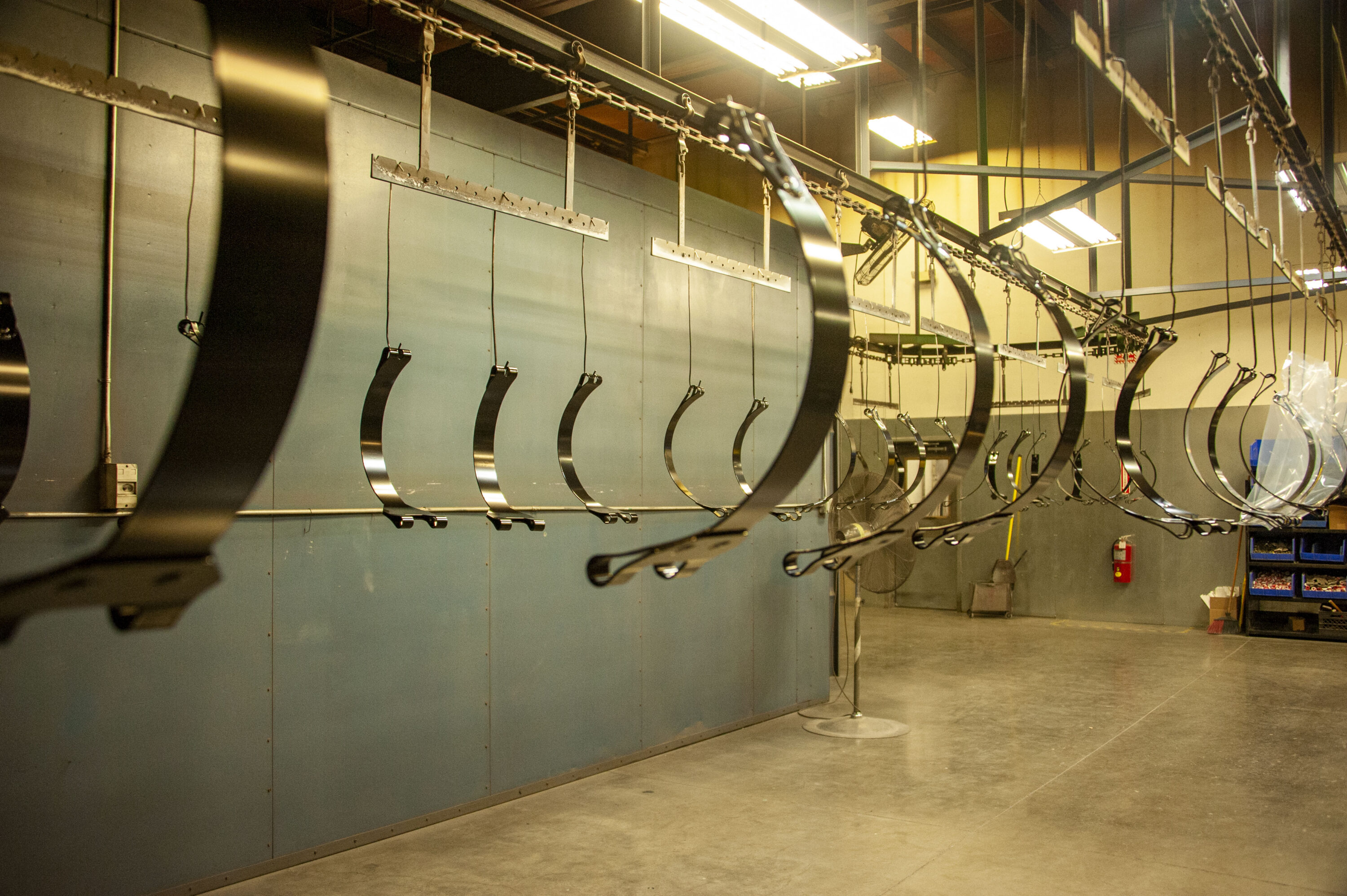

TMCO’s finishing capabilities include small- and large-format abrasive blasting, an automated powder production line, a conveyor-driven powder coat line, a large-format powder booth and cure oven, wash capabilities, and a mid-size batch booth and oven.
Keeping powder coating alongside fabrication, welding, machining, assembly, and quality control helps reduce external handoffs and coordinate finish requirements with upstream and downstream manufacturing operations.
Coating performance remains project-specific. Contact TMCO to review your substrate, part dimensions, service environment, finish specification, masking needs, production volume, and required inspection or testing before quoting.
The correct preparation depends on the substrate, its condition, the service environment, and the approved coating system. It may include cleaning, abrasive blasting, and a compatible conversion coating such as iron phosphate, zinc phosphate, or a newer pretreatment technology. These processes serve different purposes and are not automatically interchangeable.
The powder’s technical data sheet defines the required cure schedule. Providers can use thermocouples and oven-profiling equipment to verify the actual metal temperature and time through the cycle. Product-appropriate cure or performance tests may provide additional verification.
Film thickness affects coverage, appearance, corrosion protection, flexibility, and dimensional fit. The acceptable range should come from the approved powder data and project specification, with measurement locations and sampling frequency defined in the control plan.
Not automatically. The customer specification and quality plan should define the appropriate adhesion method, frequency, and acceptance rating. ASTM D3359 is destructive and has method limitations based on coating thickness, so representative coupons or designated test areas may be appropriate.
Exterior-grade polyester powders are commonly used because of their UV and weathering performance, but there is no single best powder for every outdoor application. Pretreatment, durability class, corrosion exposure, color-retention requirements, film build, cure, and part design must all be considered.
