Producing one precision-formed sheet metal part within tolerance demonstrates that a setup can work. Maintaining those same tolerances across hundreds or thousands of parts requires a stable, documented, and controlled manufacturing process.
For OEM production, the important question is not whether a fabricator can produce an acceptable first article. It is whether that fabricator can maintain the required dimensions throughout the production run—even as material lots, operators, setups, tooling conditions, and production schedules change.
Consistent precision depends on more than the capabilities of the equipment. It requires a clear understanding of the process, standardized setups, appropriate tooling, material controls, in-process inspections, and documented responses to variation.
These controls separate precision sheet metal forming operations that produce repeatable results from those that deliver inconsistent parts.
A first article or first-piece inspection confirms that the initial setup can produce an acceptable part. It does not prove that the process will remain stable throughout an entire production run.
First pieces often receive additional attention. Tooling is carefully installed, programs are reviewed, and initial adjustments are made for the specific geometry. As production continues, additional sources of variation can affect the result.
These variables may include:
None of these variables automatically makes the process unreliable. The risk comes from failing to monitor and control them.
A capable precision forming operation establishes acceptable process ranges, measures critical characteristics at appropriate intervals, and responds to variation before it produces a large quantity of nonconforming parts.
Material selection is one of the starting points for precision forming.
Different materials – and different grades or tempers of the same material—respond differently to bending. Material thickness, yield strength, tensile strength, hardness, ductility, grain direction, and surface condition can all affect the finished bend.
Springback is especially sensitive to material properties. Material with greater strength may require different bend compensation than lower-strength material of the same nominal thickness.
Even when two material lots meet the same specification, allowable variation within that specification may affect the final bend angle or inside radius.
An effective material-control process may include:
It is not always practical or necessary to independently test every mechanical property at receiving. The appropriate level of verification should be based on the component’s tolerance, risk, production volume, and customer requirements.
For high-risk components, the fabricator may establish lot-specific verification or adjust forming parameters based on measured results from the new material lot.
OEMs should ask whether their sheet metal forming partner has a documented process for receiving, identifying, tracing, and managing material changes throughout production.

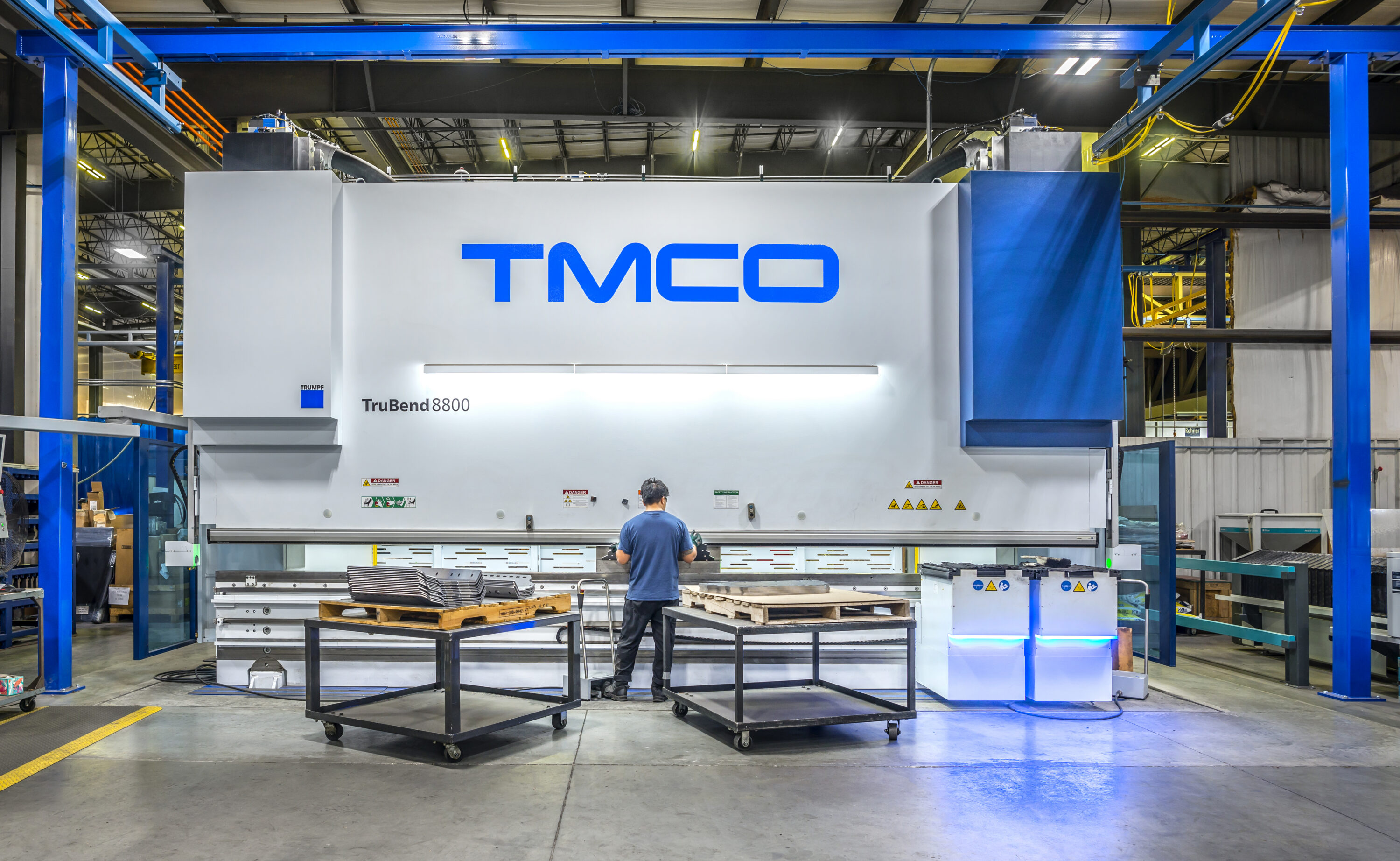

Press brake tooling plays a major role in determining the geometry, consistency, and surface quality of a formed component.
Tooling selection should consider:
The die opening affects the required force, inside radius, and springback. The punch radius influences how the material flows during bending. Tool alignment, condition, and cleanliness can also affect bend accuracy and part appearance.
Tooling must be treated as part of the controlled production process. Worn, damaged, contaminated, or incorrectly installed tooling can introduce variation that cannot be corrected through operator attention alone.
Ask potential forming partners:
The answers will help reveal whether tooling is managed as a precision production asset or simply used until parts begin failing inspection.
Repeatable forming depends on more than having the correct tooling. The complete setup must be documented well enough that it can be reproduced accurately.
A standardized press brake setup may document:
Photographs or visual work instructions may also help operators confirm tooling placement and part orientation.
Standardized setup instructions reduce dependence on memory and make it easier to reproduce an approved process across different shifts or future production runs.
Operator experience remains important, but a precision process should not rely entirely on one employee knowing how to make the part. Critical process knowledge should be documented, controlled, and available to qualified employees.
Springback is the elastic change in shape that occurs after forming pressure is removed. Most bent sheet metal components experience some degree of springback, although the amount varies by material, geometry, and forming method.
Factors that influence springback may include:
Press brake programs compensate for springback by adjusting the forming depth or bend angle so the part reaches its required final geometry after it is released.
Compensation established for one material lot may not produce identical results with another lot. Adjustments may also be needed after a new setup, tooling change, or other change that affects the process.
Some modern forming systems use angle-measurement technology to measure and correct bends during the forming cycle. When that technology is not available or appropriate, controlled first-piece approval and periodic angle measurements can provide similar oversight.
Effective springback management requires:
During supplier evaluation, ask how springback compensation is established, monitored, adjusted, and documented.
A mature process controls these adjustments systematically instead of relying on unrecorded operator changes.
The purpose of in-process quality control is to identify process variation before it creates an entire batch of nonconforming parts.
An effective inspection plan should be based on the component’s risk, tolerance, production volume, and demonstrated process stability. It should identify which features will be measured, how they will be measured, and how frequently inspections will occur.
The first part from a new setup should be measured against the applicable drawing requirements before full production begins.
First-piece inspection may also be required after:
This prevents setup errors from continuing through the full production run.
Critical dimensions should be measured at defined intervals during production.
The sampling frequency should not be selected arbitrarily. It should reflect the stability of the process, production quantity, severity of a potential defect, inspection time, and customer requirements.
A new or high-risk process may require more frequent inspection. A proven, stable process may support a different sampling plan.
Statistical process control may be appropriate for critical characteristics produced in sufficient volume.
Control charts can help distinguish normal process variation from unusual changes that may indicate tool wear, setup movement, material changes, or another special cause.
SPC should be used to understand the process—not simply to create additional paperwork. The measurement system, sampling plan, and selected chart must be appropriate for the characteristic being monitored.
Inspection results, production parameters, and approved adjustments should be recorded.
Documentation provides:
Without reliable documentation, valuable process knowledge can be lost between operators, shifts, and repeat orders.
Before selecting a manufacturing partner, ask how the company controls the entire forming process-not just which press brakes it owns.
Important questions include:
A strong supplier should be able to answer these questions with specific procedures and examples.
At TMCO, precision sheet metal forming is managed through documented process parameters and quality checkpoints-from incoming material verification through forming, secondary operations, and final dimensional inspection. These controls help ensure that the performance demonstrated by the first article continues throughout the production run.
Precision sheet metal forming is the process of bending and shaping sheet metal components to controlled dimensional requirements using press brakes, roll-forming equipment, specialized tooling, or other forming methods.
A precision process includes the controls needed to maintain those requirements throughout production.
Production introduces variables that may not be fully represented by one first article. These can include material-lot changes, tool wear, repeat setups, operator changes, and variation from upstream processes.
Maintaining tight tolerances requires systems that detect and control these variables.
Material thickness, strength, temper, ductility, and grain direction can affect the final bend angle, bend radius, and amount of springback.
Even material lots that meet the same specification may behave somewhat differently during forming.
Springback is the elastic change in shape that occurs after forming pressure is removed. The material moves slightly toward its original shape, which can affect the finished bend angle.
It can be managed through bend compensation, appropriate tooling, first-piece verification, angle measurement, and controlled process adjustments.
Appropriate controls may include material verification, first-piece inspection, periodic in-process measurements, documented setup parameters, calibrated inspection equipment, lot traceability, and statistical process control when suitable for the production volume and risk.
The inspection plan should be based on the specific component rather than a universal sampling frequency.
